Perspective view FM60 Cubera AI fixed-mount scanner

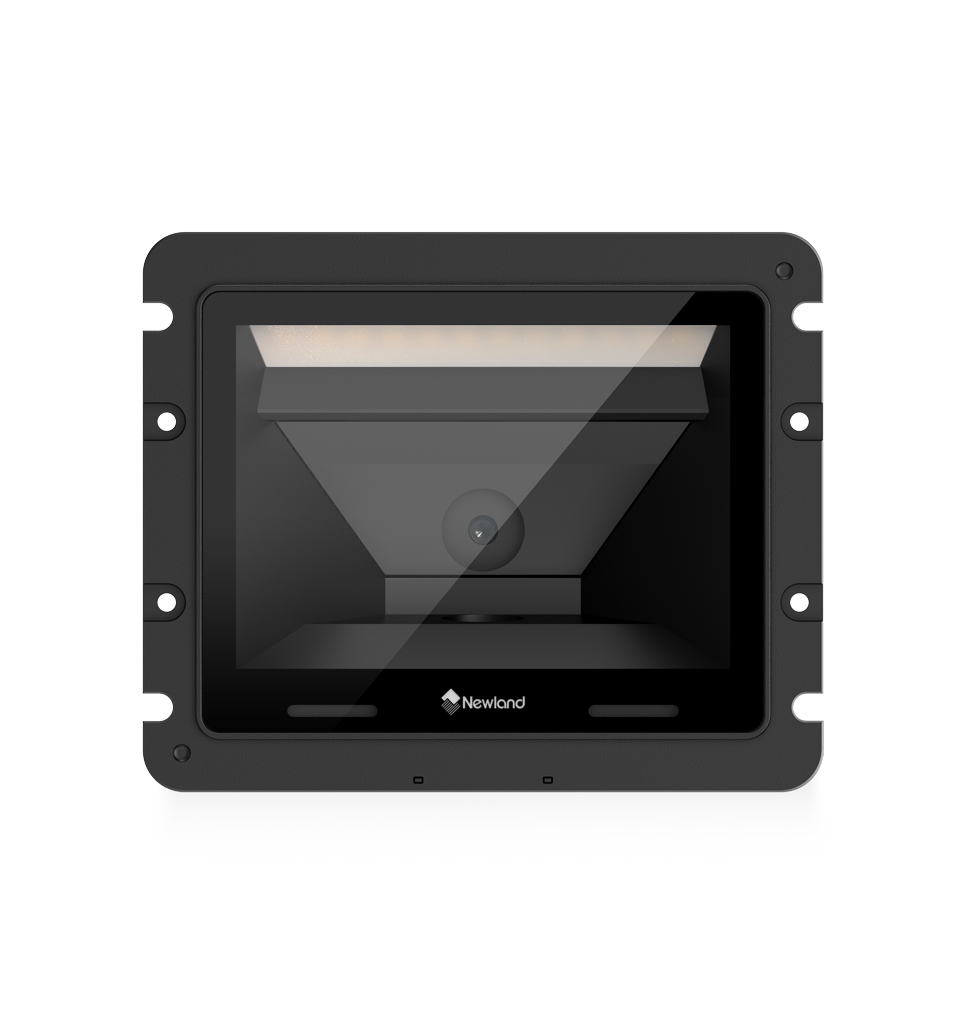

Front view FM60 Cubera AI fixed-mount scanner

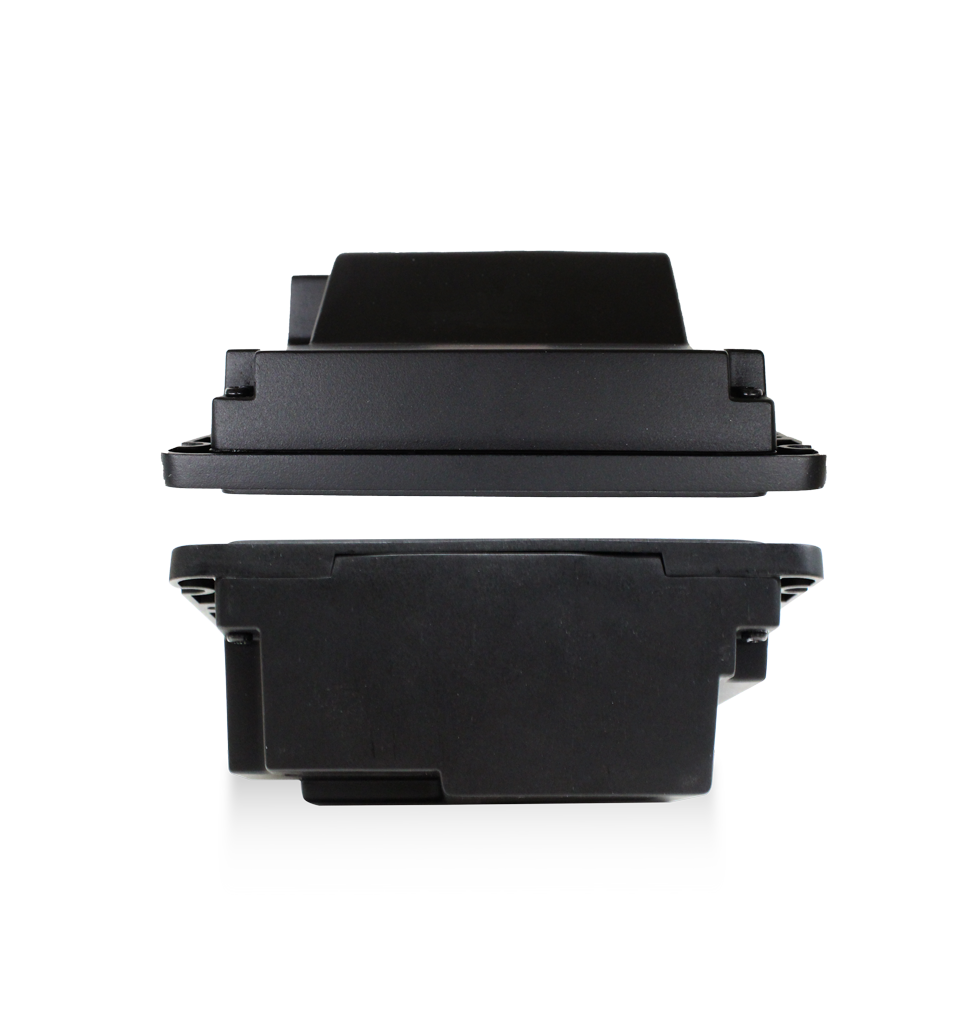

Top and bottom views FM60 Cubera AI fixed-mount scanner

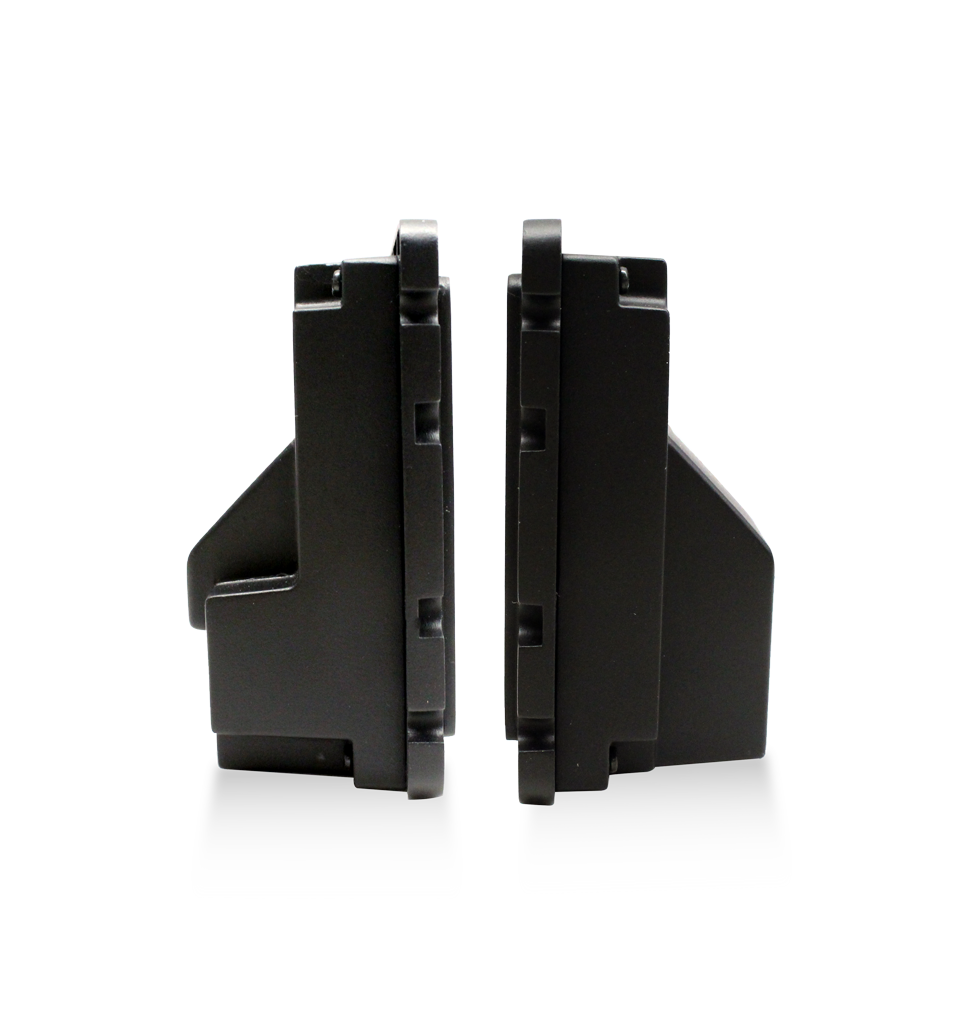

Side views FM60 Cubera AI fixed-mount scanner

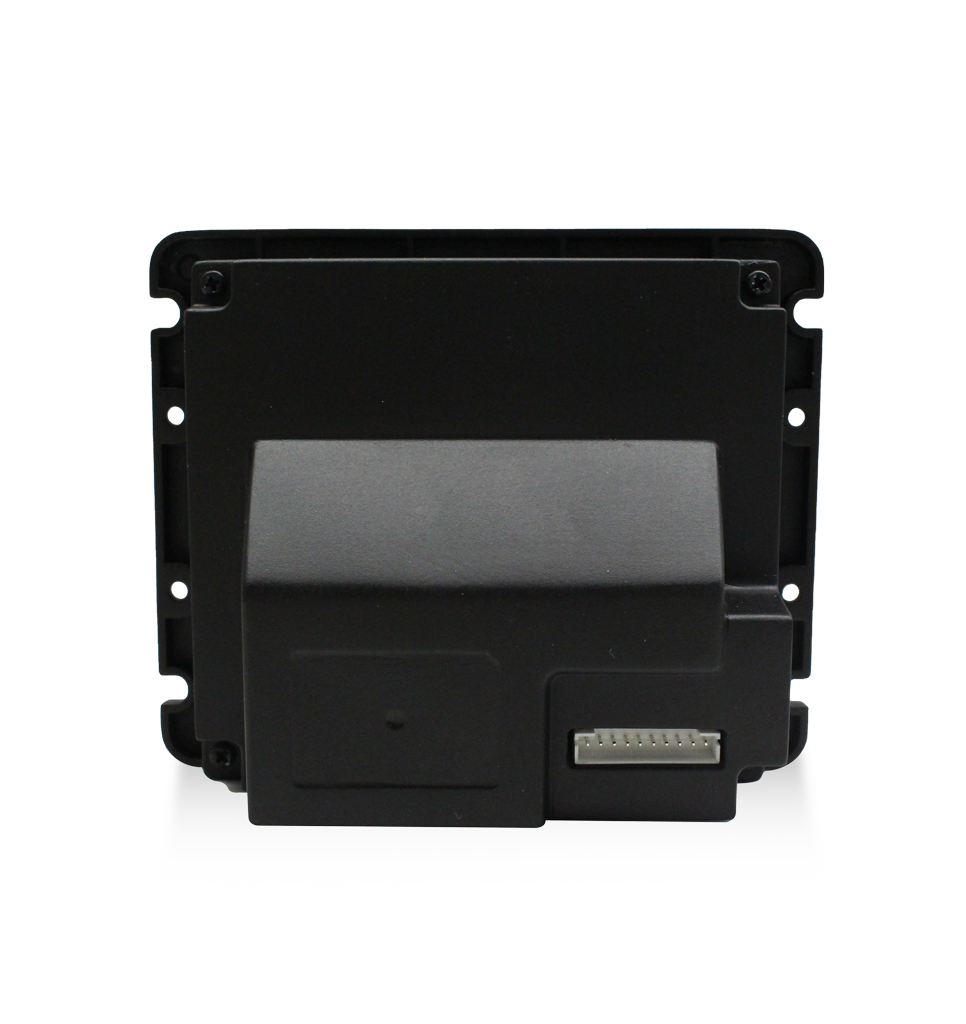

Back view FM60 Cubera AI fixed-mount scanner

FM60 Cubera AI

Fixed-Mount Scanners

Why choose FM60 Cubera AI?

  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • OCR capability for precise data capture from IDs
  • High motion tolerance to enhance efficiency and reduce queues

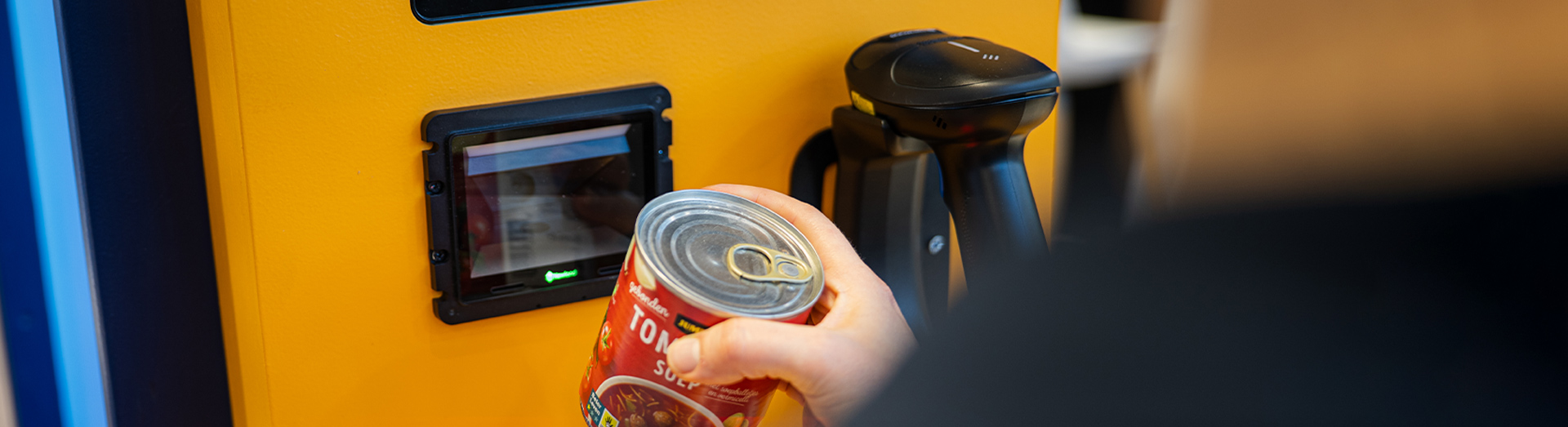

The FM60 Cubera AI is equipped with AI-powered barcode decoding technology. This advanced technology enables the device to accurately decode a wide variety of barcodes, even on challenging surfaces. Designed for seamless integration into self-service kiosks and complete point-of-sale systems, its medium scanning window and high motion tolerance enhance user efficiency and help reduce checkout lines.

Experience intelligent barcode reading with AI technology.

Features

  • AI-Powered Scanning Technology.
    The FM60 Cubera AI is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to accurately interpret barcodes. They efficiently analyze images to detect, locate, and read barcodes. The FM60 Cubera AI excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
  • Powerful OCR Capability.
    The FM60 Cubera AI is ideal for applications needing precise data capture from IDs and official documents. It is equipped with advanced OCR technology that scans and accurately extracts text.
  • Medium Scan Window.
    The FM60 Cubera AI is equipped with a medium scan window, which enables quick barcode capture, even when products are held very close to the device or not perfectly aligned. A significant benefit of this medium scan window is its cost-effectiveness for system integrators, as these devices are easier to mount on different types of kiosks.
  • Advanced Multi-Core Processing Platform.
    Equipped with a multi-core processing platform, the FM60 Cubera AI provides powerful computing capabilities, ensuring faster and more stable decoding performance.
  • High Motion Tolerance.
    The FM60 Cubera AI can quickly capture codes at a speed of 2 meters per second. This is particularly significant for users as it greatly enhances efficiency and reduces checkout queuing.
  • Multiple Status Indicators.
    The FM60 Cubera AI features six different status indicators that display the current working status of the scanner, including decoding, configuration, communication, and any abnormal conditions. This is especially important in fast-paced environments, such as static point-of-sale settings, as it allows users to quickly verify whether a barcode has been scanned correctly, helping to prevent unnecessary delays at checkout.

Technical Specifications

  • Data Capture
    1D Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Coupon, Interleaved 2/5, ITF-14, ITF-6, Matrix 2/5, Code 39, Codabar, Code 93, China Post 2/5, UCC/EAN-128, GS1 Databar, GS1 Composite, Code 11, ISBN, ISSN, Industrial 2/5, Standard 2/5, Plessey, MSI-Plessey, AIM 128, ISBT 128, Code 49, Code 16K
    2D PDF417, Micro PDF417, QR / Micro QR, DataMatrix, Aztec, Chinese Sensible Code, Maxicode, GridMatrix, Code One, DotCode
    Depth of Field EAN 13 (13mil) 0 mm - 180 mm
    Depth of Field QR (15mil) 0 mm - 130 mm
    Field of View Horizontal 65.6˚
    Field of View Vertical 44.6˚
    Illumination White LED (5000K)
    Image Sensor 1280 x 800 CMOS
    Minimal Print Contrast 25%
    Motion Tolerance >2m/s
    Postal USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, Japanese Post
    Resolution ≥4mil (1D)
    Scan Angle Pitch ±55°
    Scan Angle Roll 360˚
    Scan Angle Skew ±50°
  • Physical
    Current @ 5VDC Operating 195.8mA (typical), 407mA (max.)
    Current @ 5VDC Standby 120mA
    Dimensions 114(W) × 46(H) × 94(D) mm
    Input Voltage 5-12 VDC±5%
    Interfaces USB, RS-232
    Notifications Beep, LED
    Weight 145g
  • Environmental
    Humidity 5% to 95% (non-condensing)
    IP Rating IP52
    Operating Temperature -20°C to 50°C (-4°F to 122°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
  • Software
    Configuration Tools EasySet
  • Certifications
    Certifications Hardware CE EMC Class B
  • Warranty
    Warranty Standard 5 Years
  • Accessories
    Accessories Optional USB-A - Dupont connector male, Multiplug adapter
  • What's in the box?
    NLS-FM6080V2-U12 FM60 Cubera AI, 1.20 meter USB cable
  • Suggested industries

    • placeholder Retail
    • placeholder Hospitality & Leisure
    • placeholder Parking
    • placeholder Postal

Available Versions

Part Number Description

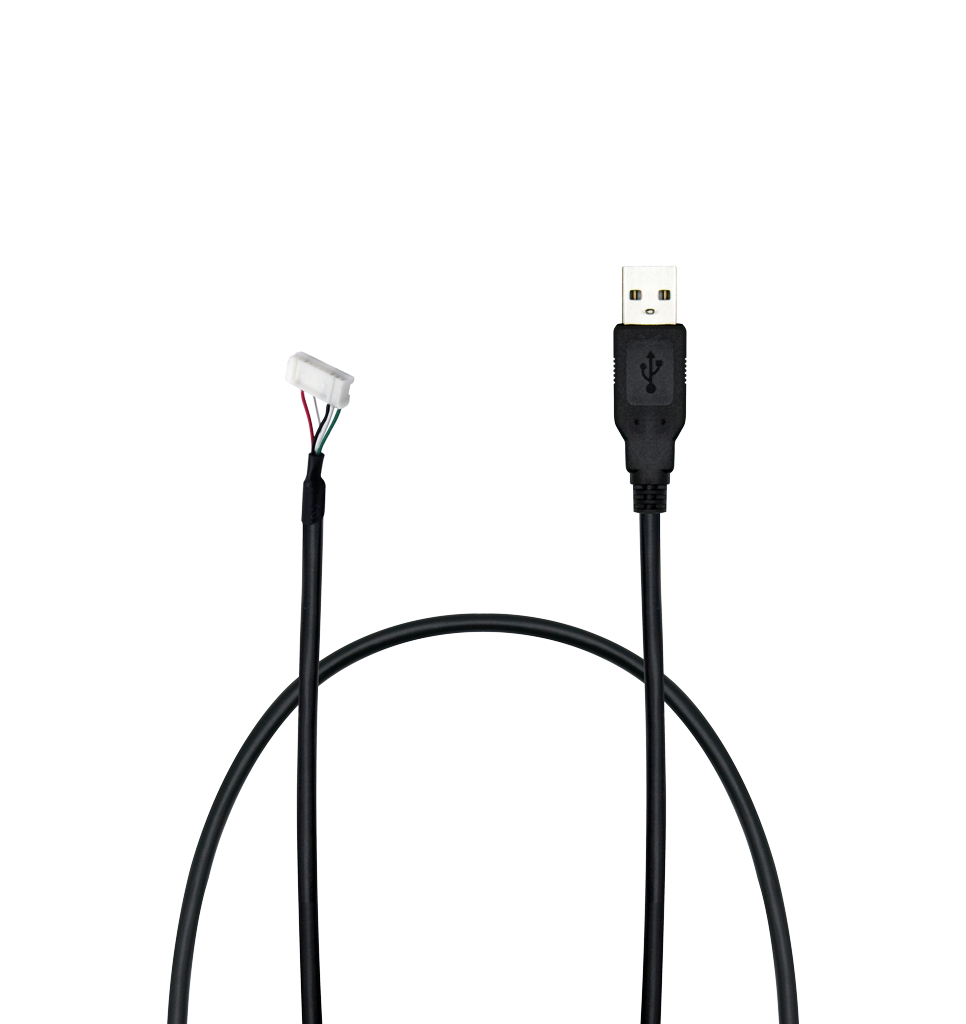

NLS-FM6080V2-U12 FM60 Cubera AI 2D CMOS Fixed-Mount Megapixel Reader, AI-powered Barcode Detection and decoding. Including 1.2 meter USB cable CBL-0164U.
